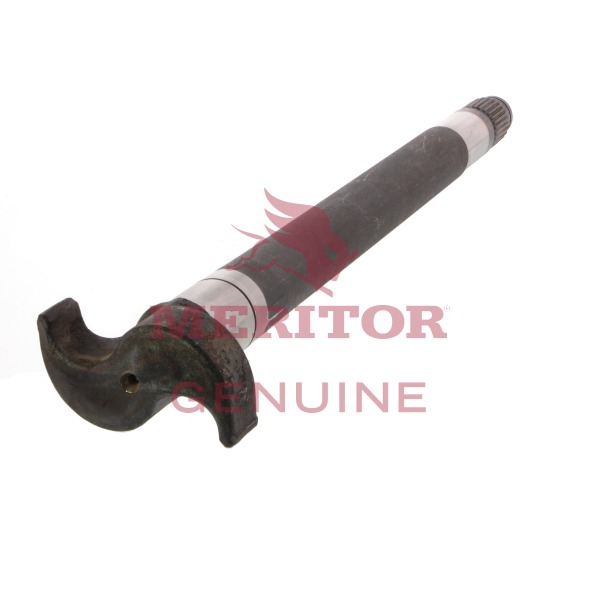

Air Brake Camshaft
Axle Hardware - Adjusting Ring
Specifications
Air Brake;Camshafts & Kits
Weight
13.4
Weight: 13.40
Unit Pack: 1
Pallet Quantity: 156
UPC Code: 737238770985
Brand: Meritor Genuine
Marketing Group: Camshafts
Left or Right: LH

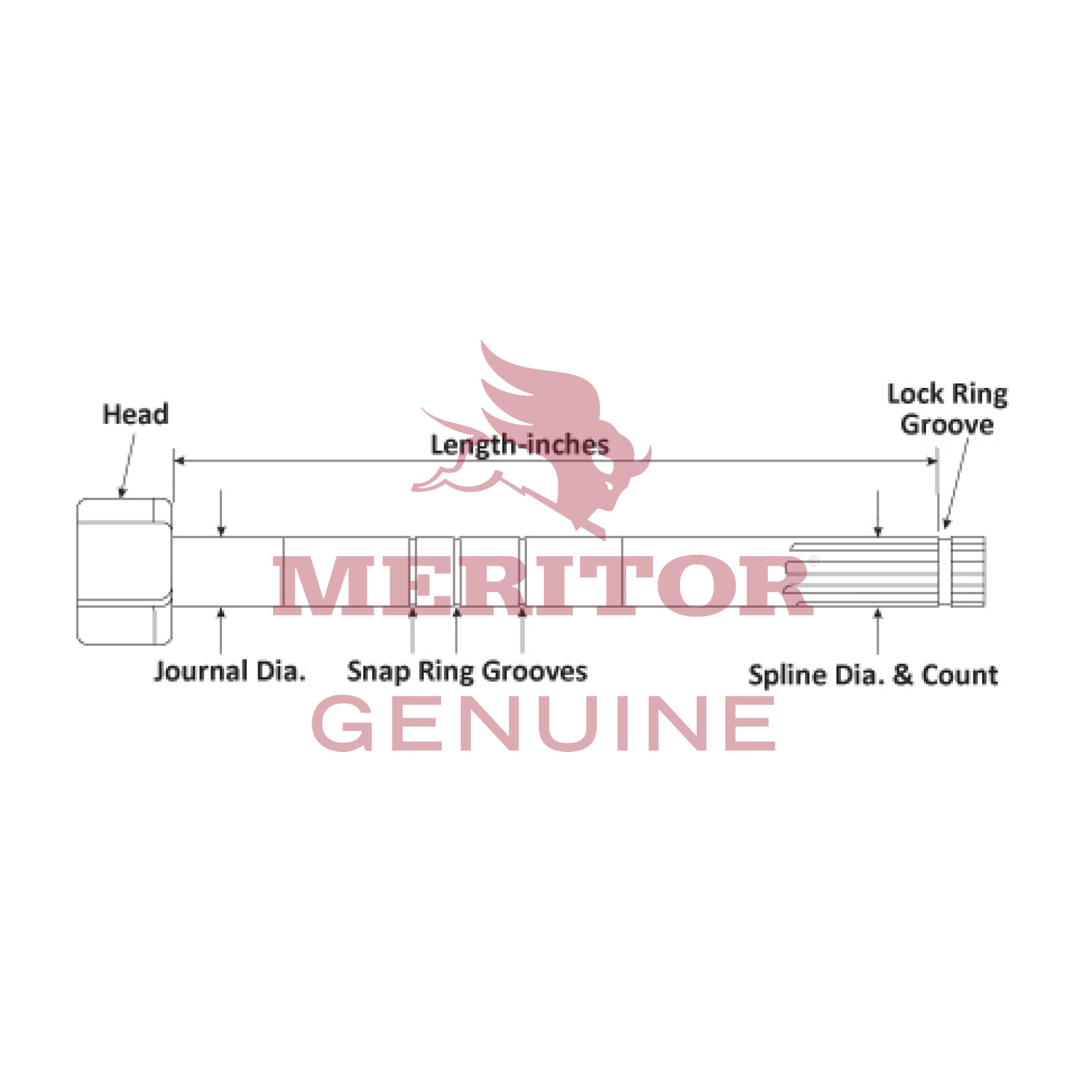

Camshaft Spline Diameter: 1.50 in.
Brake Diameter: 16.50 in.
Effective Length: 20.40 in.
Camshaft Spline Count: 28
Bushing Journal Length: 1.77 in.
OE Mfg.: Meritor
Head Type: 11
Brake Hardware Kit: KIT8000HD 16.50 in. Brakes, KIT8824 HD 15.00 in. Brakes
Paired Camshaft: 2210S8157
Axle: Trailer
Camshaft Repair Kit: KIT8048 16.50 in. Brakes; KIT8058 16.50 in. Brakes Press-in Bushing; KIT8078 16.50 in. Brakes Bolt-on Bushing; KIT8883 15.00 in Brakes
Brake Type: Q Plus
VMRS Code: 013-017-004
Notes: 16-1/2 in. Q Plus, Q and P brakes. Cast spiders with press-in bushings. Fabricated spiders with weld-on bushings.
Compatibility
Alternative Part Numbers
Meritor 1 2210T8158; Automann 12228201301BWPM991L; Dana 17629Dayton Parts Batco 04912042; Eaton Top Spec 72439; Eaton 14427; Haldex 41526; Hercules H10526L, HQ10366L ;Spicer 17813; Transit Parts TP3044; Other RW2210T8158, S9517, SIRC443BL, TDA2210T8158
