Accessory Drive Belt

Green Stripe Truck & Bus Series V-Belt

Gates Corporation Green Stripe Part No: TR28473

$41.63

Specifications

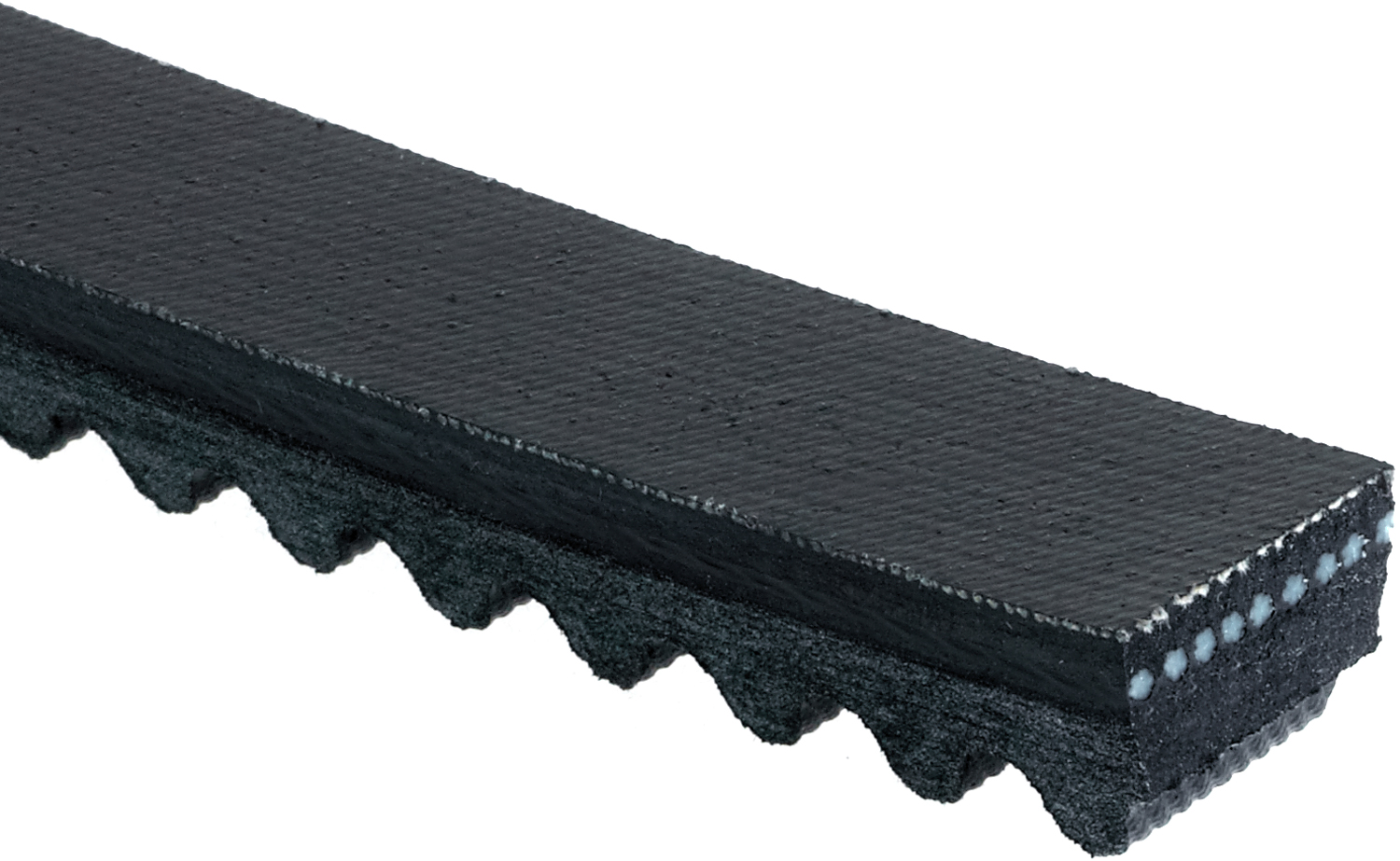

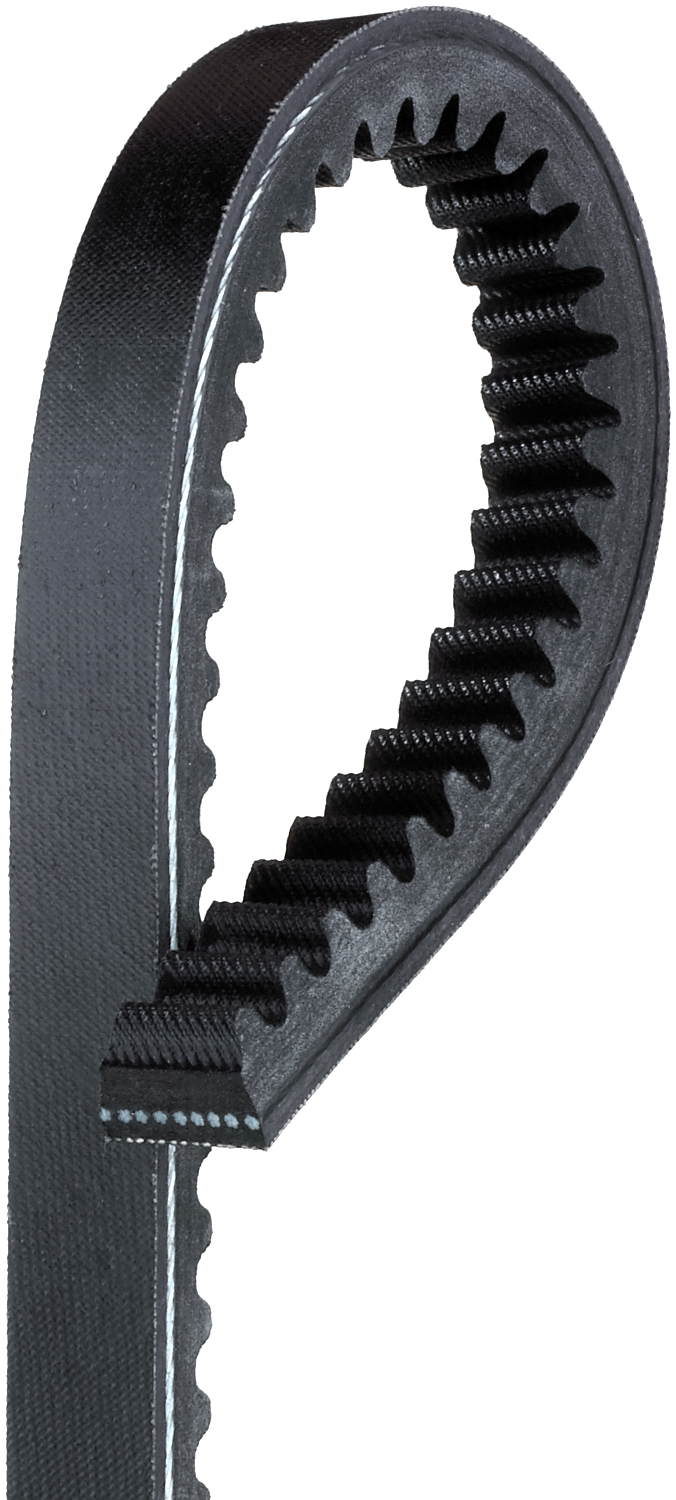

Gates Green Stripe Truck and Bus Series V-Belts are specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to the belt. Its deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool. Special notch design resists cracking while providing tensile member support during operation.

Weight

0.7100

Strand Quantity: 1
Type: Truck & Bus V-Belt
Cross Section 20A
Effective Length (in) 47.3
Effective Length (mm) 1201
Notched true
Outside Circumference (in) 47.95
Outside Circumference (mm) 1218
Section 20A
Top Width (in) 0.78
Top Width (mm) 20
Angle. 40
Thickness (in) 0.47
Thickness (mm) 12

Compatibility

Freightliner FLC120: 1981–1988
Freightliner FLD132: 2001
Freightliner FLB: 1994–1996
Freightliner FLT086: 1981–1988
Mack R600: 1987–1990
International Harvester S1955: 1982–1989
Ford L-Series (Cummins N14): 1997–2001

Alternative Part Numbers

ACDelco T28473
AE1616
AE1621
Alliance Truck Parts GT28476
Alliance Truck Parts GT28476E
Alliance Truck Parts GTFL562
Allis Chalmers 4338770
Allis Chalmers 4341903
Allis Chalmers 4349109
Allis Chalmers 4612094
Allis Chalmers 4613770
Allis Chalmers H12094
ASF5924
B1163148
B427K210
Bando 7470
BF Goodrich 26480
BF Goodrich 27482
British Leyland 1B8811
British Leyland 1B9547
CARQUEST TR28473
Carquest TR28473
Clark Equipment 22293
Clark Equipment 3678239
Clark Equipment 5204510
Clark Equipment PGF15157
Continental Belt 28473MK
Cummins 134824
Cummins 178566
Cummins 178624
Cummins 3040388
C04844
C629029C23
C629029C24
D1104
D35723
D5481
D7HT8620RA
D7HT8A615MA
D7TA8A615MA
D8PZ8620D
D8PZ8620U
Davey Compressors 11067
Dayco 253M
Dayco 283M
Dayco 28473
Dayco 32252
Dayco 420319
Dayco 422314
Dayco 422435
Dayco 423165
Dayco 423318
Dayco 423693
Dayco 431032
Dayco 434556
Dayco 45212
Dayco 45698
Dayco 46040
Dayco 46059
Dayco 46218
Dayco 47712
Dayco 47938
Dayco 48487
Dayco 49797
Dayco 50147
Dayco 50699
Dayco 51137
Dayco 51371
Dayco 54248
Dayco 54290
Dayco 55479
Dayco 55781
Dayco 56253
Dayco 56912
Dayco 57072
Dayco 58416
Dayco 711M
Dayco 917M
DG946
Deutz-allis 74612094
Diamond Reo DT2401T1
Diamond Reo DT2401Z1
DT2401Z
Durkee-Atwood 28-480
Durkee-Atwood 28-485
Dynacraft D11025780
Epton 26480
Epton 27482
Euclid 141769
Euclid 5137905
Fleetrite L28477
Flxible Transit Bus 92278
Ford 500E8620A
Ford 77C8619
Ford D7HT8620RA
Ford D7HT8A615MA
Ford D7TA8A615MA
Ford D8PZ8620D
Ford D8PZ8620U
Freightliner 2310001031
Freightliner 231000131
Freightliner 2312160473
Freightliner Trucks 2310001031
Freightliner Trucks 231000131
Freightliner Trucks 2312160473
Frigiking 9106908
Gardner Denver 13C153
Gates 19A1200
Gates 562
Gates 626
Gates 699
Gates TR28473
General Motors 1312604
General Motors 1312614
General Motors 1927094
General Motors 1927112
General Motors 2090855
General Motors 2190689
General Motors 2190706
General Motors 2355260
General Motors 408064
General Motors 5126405
General Motors 5134213
General Motors 5175548
General Motors 555065
GLOBE LIFELINE 1626
Goodyear 28473
Goodyear 28477
Gray Marine D1104
Grumman Flxible 92278
H12094
H120941
H120942
Harnischfeger Ph Diesel T14015
Hartschfeger 7Z332D1
Hyster 123877
Ingersoll Rand 5518
Ingersoll/Rand 5518
International Harvester (IHC) 1686803C1
International Harvester (IHC) 1696803C1
International Harvester (IHC) 219619H1
International Harvester (IHC) 495845C1
International Harvester (IHC) 495846C1
International Harvester (IHC) 495846C91
International Harvester (IHC) 53320H
John Deere Z9159H
KE6571
Koehring 14596
Kysor 300340
Kysor B1163148
Marmon 77C8618
Marmon MH555130
Massey Ferguson 5189569
MBL Three Stars 28475
Metric 20A1200
Mitsuboshi RECMF9460
Mitsuboshi RECMF9465
Mopar BH-137
Morris Bros V6436
Motorcraft JG-477
NAPA 25-11980
NAPA Belts/Hose 25-28473
Onan 511P21
Pacific Car & Foundry 2800050470
PB2157
Perkins 0070082
Pettibone-Mulliken A16915
PGF15157
RECMF9460
RECMF9465
Steiger Tractor 061580
Teledyne Continental B427K210
Teledyne Continental M330K215
Teledyne Continental T427V200
Teledyne Wisconsin MH102
Teledyne Wisconsin MH102A
Thew 22077
Thew D5481
TH8464
TH84641
Towmotor C629029C23
Towmotor C629029C24
U.S. Government 507288
U.S. Government 507288
Unit Crane & Shovel 91210
United States Government 507288
Volvo GM Heavy Truck V1090894
Volvo GM Heavy Truck V1091047
WABCO PB2157
WABCO TH8464
Wagner Electric AC2931
Wagner Electric AE1616
Wagner Electric AE1621
Waukesha 100925
White 10X5203
White 1706558
White 1720582
White 348271
White 368948
White 43676A
White 47261B
White 491441
White 6571A
White 700806
White 700848
White 83298A
Z9159H
