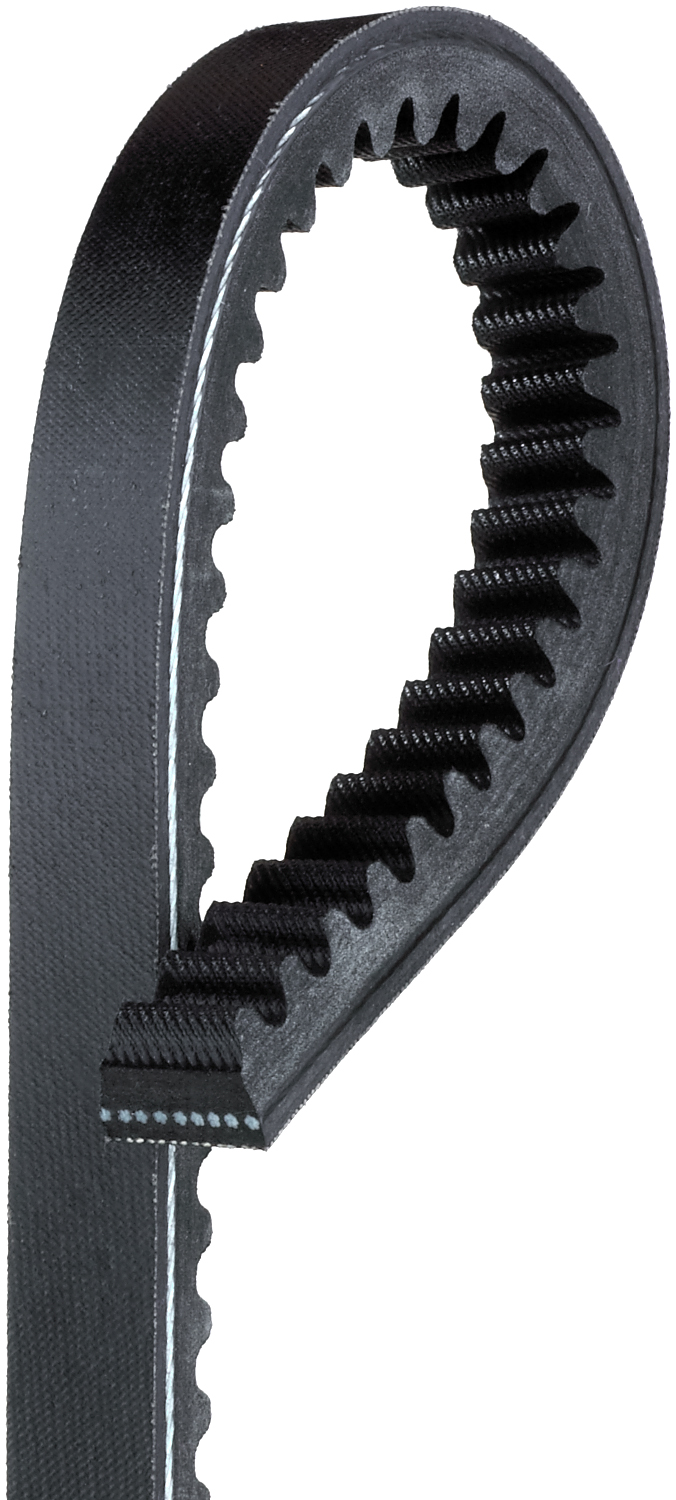

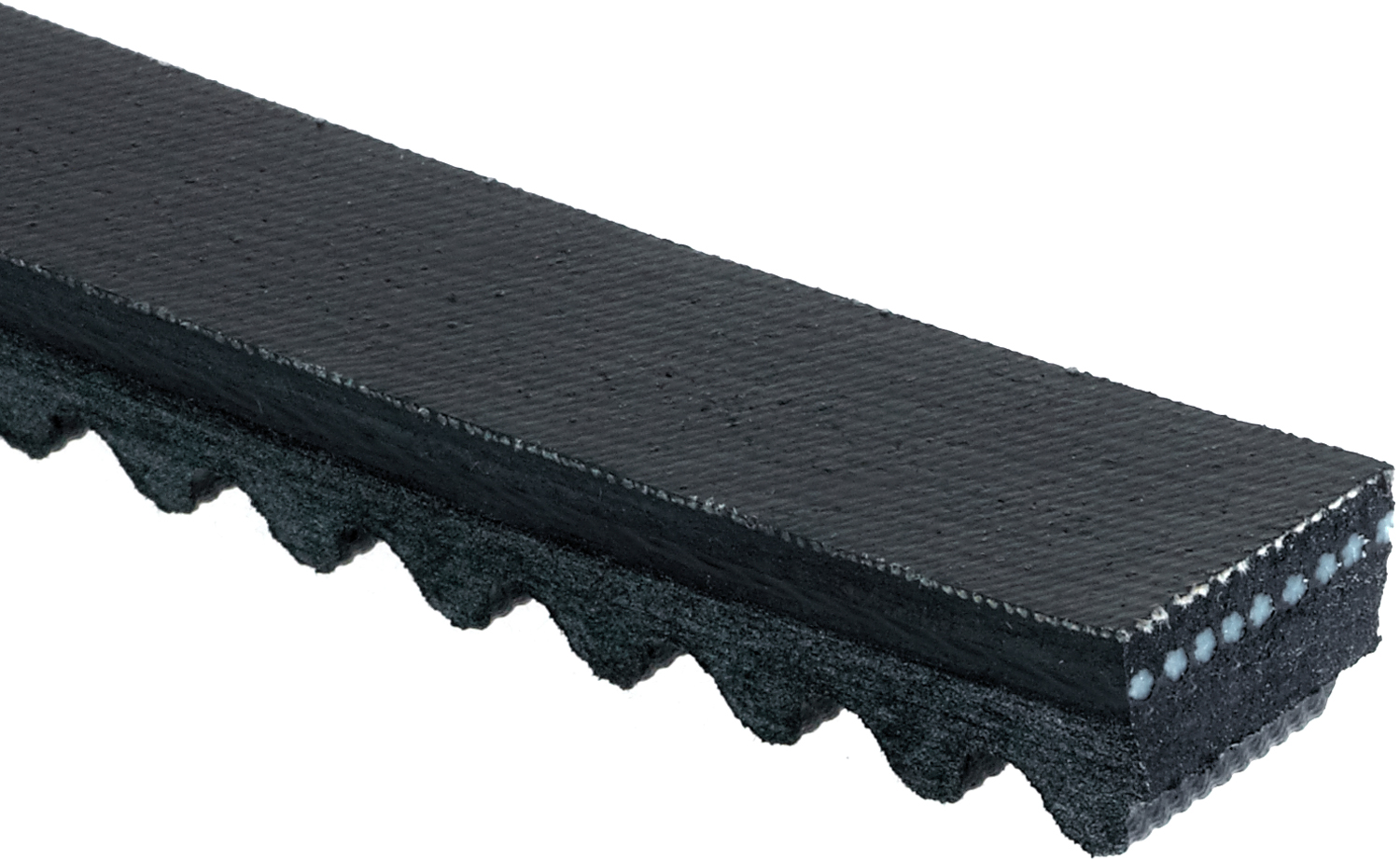

Gates Corporation Accessory Drive Belt Part No: TR28463
Green Stripe
The Gates TR28463 Green Stripe Truck & Bus V-Belt is engineered for heavy-duty trucks, buses, and off-road equipment. Its durable construction absorbs normal shock loads while the deep notch pattern allows for greater flexibility over small pulleys, keeping the belt cool during operation. The specially designed notches resist cracking and provide reliable tensile support for consistent performance. With a 46.25-inch effective length and 0.78-inch top width, this belt ensures long-lasting durability and smooth, efficient power transmission.
Specifications
Gates Green Stripe Truck and Bus Series V-Belts are specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to the belt. Its deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool. Special notch design resists cracking while providing tensile member support during operation.
Strand Quantity: 1
Type: Truck & Bus V-Belt
Cross Section 20A
Effective Length (in) 46.25
Effective Length (mm) 1175
Notched true
Outside Circumference (in) 46.89
Outside Circumference (mm) 1191
Section 20A
Top Width (in) 0.78
Top Width (mm) 20
Angle. 40
Thickness (in) 0.47
Thickness (mm) 12
Type: Truck & Bus V-Belt
Cross Section 20A
Effective Length (in) 46.25
Effective Length (mm) 1175
Notched true
Outside Circumference (in) 46.89
Outside Circumference (mm) 1191
Section 20A
Top Width (in) 0.78
Top Width (mm) 20
Angle. 40
Thickness (in) 0.47
Thickness (mm) 12
Weight
0.6900
Compatibility
1991 International/Navistar, 9300, Cummins N14 Diesel, Fan & Hub
Alternative Part Numbers
- ACDelco T28463
- Alliance Truck Parts GT28466
- Alliance Truck Parts GT28466E
- Alliance Truck Parts GTFL4571
- Alliance Truck Parts GTFL503
- Allis Chalmers 1128092
- Allis Chalmers 4351295
- Allis Chalmers 4353710
- Allis Chalmers 4354281
- Allis Chalmers 4357347
- Allis Chalmers 582377
- Allis Chalmers DE51295
- Allis Chalmers DE512951
- Allis Chalmers DE512952
- Allis Chalmers H12145
- AM General MA4120001
- Bando 7455
- Bando 7460
- BF Goodrich 27461
- BF Goodrich 28473
- Bosch 910416-9218
- Carquest TR28463
- CARQUEST TR28463
- Case A26660
- Case A27067
- Case Tractor A26660
- Case Tractor A27067
- Chrysler C101374
- Clark Equipment AJF3475
- Clark Equipment CA1171
- Continental Belt 28467MK
- Continental Belt V144
- Cummins 117209
- Cummins 125769
- Cummins 178505
- Cummins 178544
- Cummins 3020731
- Cummins 3040387
- Dayco 116M
- Dayco 28465
- Dayco 420393
- Dayco 420886
- Dayco 422427
- Dayco 42531
- Dayco 44137
- Dayco 44314
- Dayco 46801
- Dayco 51392
- Deutz-allis 70582377
- Deutz-allis 71128092
- Divco Trucks 4031
- Durkee-Atwood 28-463
- Durkee-Atwood 28-466
- Epton 28473
- Fiat 74351295
- First Products 28-465
- Fleetrite L28467
- Fleetrite ZAH28465
- Fleetrite ZJG28463
- Fleetrite ZJG28467
- Flxible Transit Bus 917112
- Flxible Transit Bus 922212
- Flxible Transit Bus 92272
- Flxible Transit Bus 92273
- Flxible Transit Bus 96477
- Flxible Transit Bus 98412
- Ford EDL 99451 A
- Gates 19A1160
- Gates 40TS
- Gates 503
- Gates 517
- Gates 6855
- Gates TR28463
- General Motors 5188780
- General Motors 9141769
- General Motors 9186629
- General Motors 9193046
- Goodyear 28463
- Goodyear 28467
- Grumman Flxible 917112
- Grumman Flxible 922212
- Grumman Flxible 92272
- Grumman Flxible 92273
- Grumman Flxible 96477
- Grumman Flxible 98412
- Hall Scott 324337
- Hall Scott 579064
- Hall Scott 655569
- Harnischfeger Ph Diesel T22276
- International Harvester (IHC) 484504C1
- International Harvester (IHC) 484506C91
- International Harvester (IHC) 486000C1
- International Harvester (IHC) 489000C1
- International Harvester (IHC) 489002C91
- International Harvester (IHC) 527419C1
- Lincoln Electric S10710
- Mack 88GB330P122
- Mack 88GB330P180
- Mack 88GB330P6
- Massey Ferguson 35124A
- MBL Three Stars 28465
- Metric 20A1175
- Midland 33X112
- Mitsubishi D11025738
- Mitsuboshi RECMF9450
- Murphy MD8019
- NAPA 25-11570
- NAPA 25-11730
- NAPA Belts/Hose 25-28463
- Oshkosh 1389840
- Pacific Car & Foundry 2800050457
- Pacific Car & Foundry 2800050465
- Pacific Car & Foundry 2800050466
- Perkins 0070008
- Perkins 0070062
- Pettibone- Mulliken A18946
- Reo 3022M5
- Reo 7412512
- Reo Trucks 3022M5
- Reo Trucks 7412512
- Towmotor C629029C21
- U.S. Government 3030010788522
- U.S. Government 3030010798522
- U.S. Government 590894
- U.S. Government 590896
- U.S. Government 7351915
- United States Government 3030010788522
- United States Government 3030010798522
- United States Government 590894
- United States Government 590896
- United States Government 7351915
- Unknown 118237
- Unknown 268307
- Unknown 43R51
- Unknown 484505C91
- Unknown 489001C91
- Unknown 50040091
- Unknown 74357347
- Unknown FE5032
- Unknown P39368
- Volvo GM Heavy Truck V1090893
- Volvo GM Heavy Truck V1115689
- Wagner Electric 336849
- Waukesha 68003
- White 031104985
- White 1602206
- White 6268307
- White 6324337
- White 700790
- White 80292A
- White 80292B
- White DT2401AK1
- White T5031
- Yale 500400901
