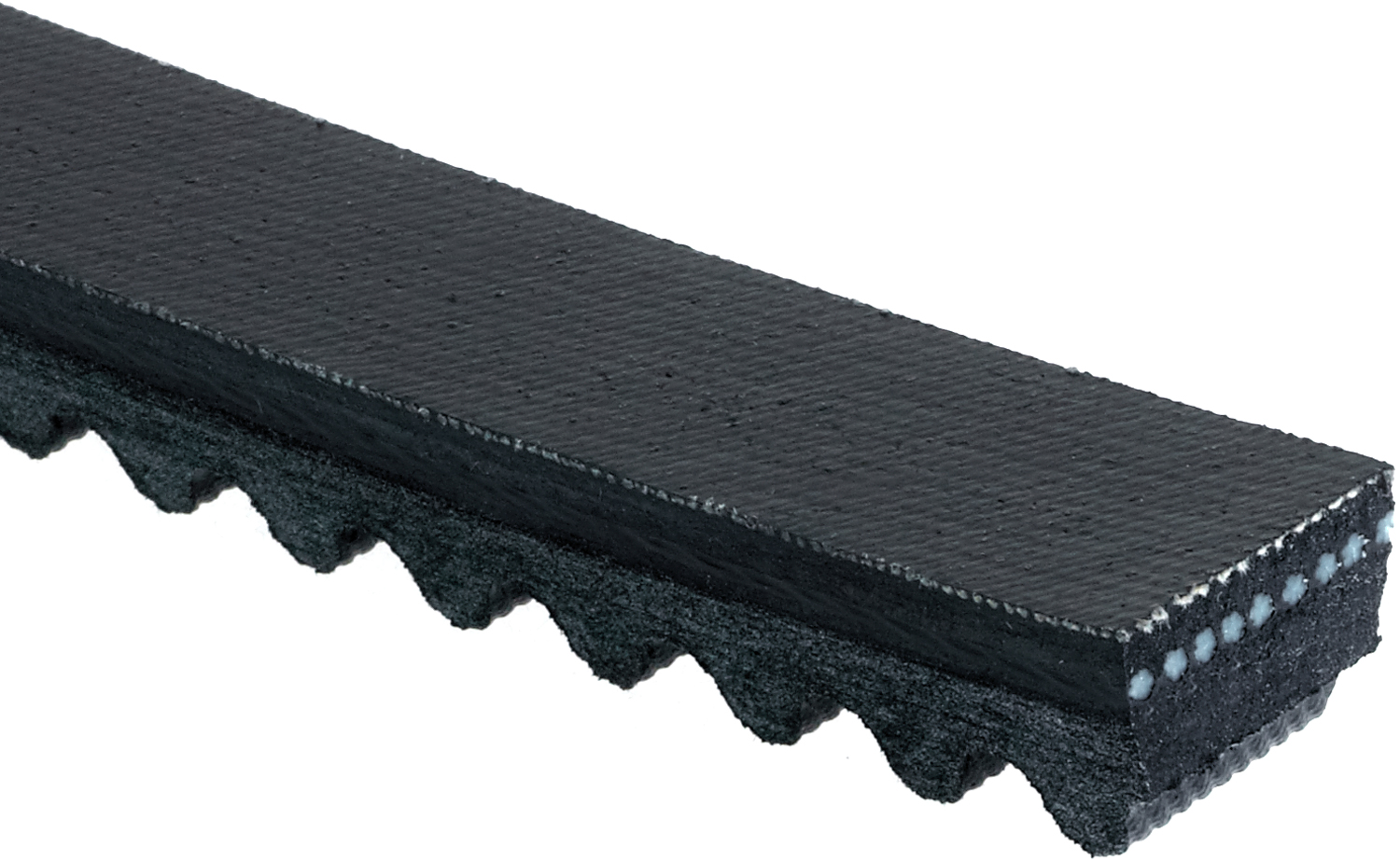

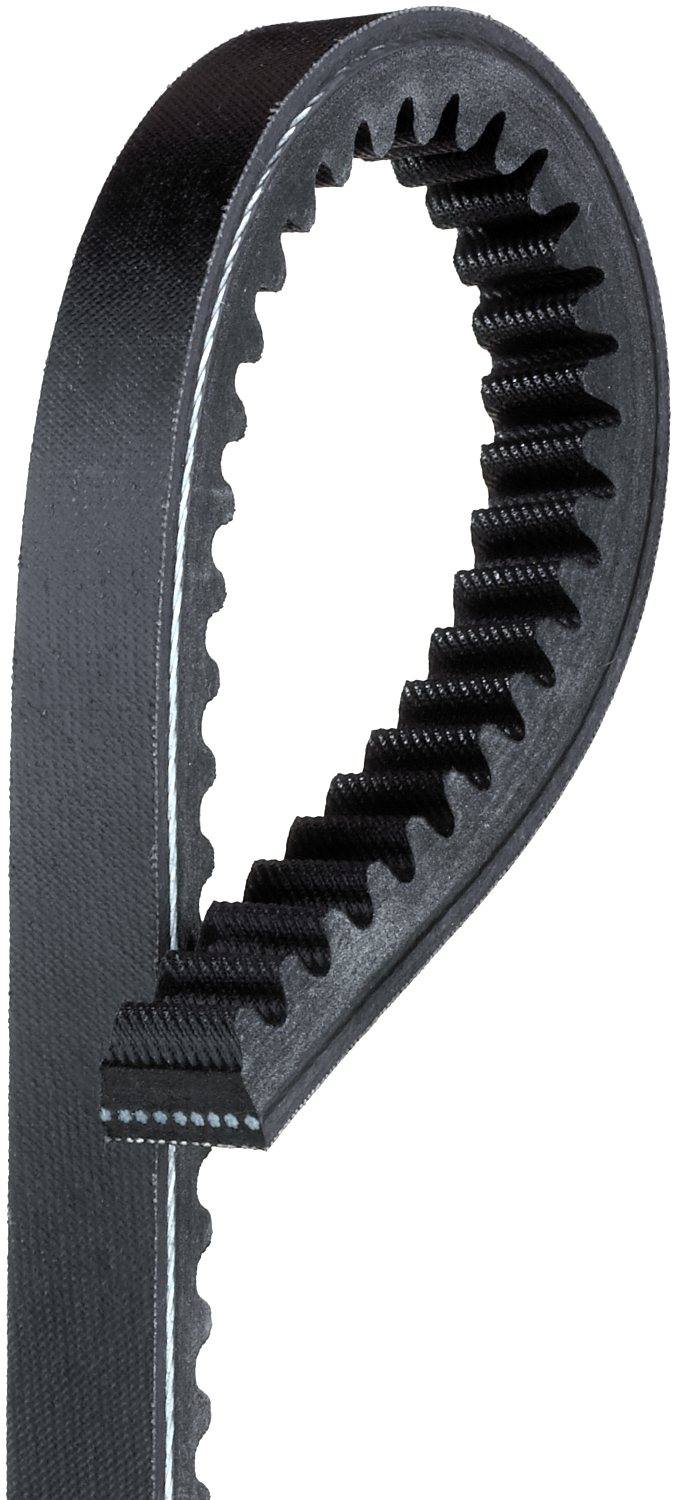

Gates Corporation Accessory Drive Belt Part No: TR22553
$34.28
Green Stripe
Keep your accessory drive running smooth with the Gates Corporation Accessory Drive Belt TR22553 from Wofford Truck Parts. This belt transfers power to belt-driven components, so you maintain steady charging and reliable operation under load. It grips the pulleys tight, tracks straight, and handles heat and daily wear without quick stretch. Replace it when you see cracks, frayed edges, glazing, or hear chirping at start-up. Techs trust Gates for consistent fit and dependable tension. Install it during routine service and check pulley alignment to protect the new belt. Wofford stock moves fast—order TR22553 now before it’s gone.
Specifications
Gates Green Stripe Truck and Bus Series V-Belts are specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to the belt.
Strand Quantity: 1
Type: Truck & Bus V-Belt
Construction: Notched
Angle: 40
Effective Length (in) 55.33Outside Circumference (in) 55.99
Top Width (in) 0.59
Thickness (in) 0.43
Type: Truck & Bus V-Belt
Construction: Notched
Angle: 40
Effective Length (in) 55.33Outside Circumference (in) 55.99
Top Width (in) 0.59
Thickness (in) 0.43
Weight
0.5600
Compatibility
Freightliner:
FLC120: 1981–1982
FLT086: 1981–1982
GMC Astro: 1982–1983
Hino:
FD17: 1988–1991
FD20: 1992
FD2218 / FD2218LP: 1993–1994
FE17 / FF17: 1985–1991
FE19 / FF19: 1989–1991
FE20 / FF20 / FF23: 1992
FE2618 / FF3018 / FF3020: 1993–1994
FG19: 1985
GC17: 1990–1991
GC20: 1992
SF17: 1988–1991
SG19: 1986–1991
SG20: 1992
SG23: 1988–1990
SG231: 1989
SG3320: 1993–1994
International Harvester C-Series: 1961–1968
Ford C-Series: 1957–1990
FLC120: 1981–1982
FLT086: 1981–1982
GMC Astro: 1982–1983
Hino:
FD17: 1988–1991
FD20: 1992
FD2218 / FD2218LP: 1993–1994
FE17 / FF17: 1985–1991
FE19 / FF19: 1989–1991
FE20 / FF20 / FF23: 1992
FE2618 / FF3018 / FF3020: 1993–1994
FG19: 1985
GC17: 1990–1991
GC20: 1992
SF17: 1988–1991
SG19: 1986–1991
SG20: 1992
SG23: 1988–1990
SG231: 1989
SG3320: 1993–1994
International Harvester C-Series: 1961–1968
Ford C-Series: 1957–1990
Alternative Part Numbers
- ACDelco T22553
- Alliance Truck Parts GT22556
- Alliance Truck Parts GT22556E
- Alliance Truck Parts GTFL536
- Allis Chalmers 4027245
- Allis Chalmers 4335002
- Allis Chalmers 4346412
- Allis Chalmers 4346657
- Allis Chalmers 4347666
- Allis Chalmers 4348206
- Allis Chalmers 4348693
- Allis Chalmers 4616587
- Allis Chalmers 4616588
- Allis Chalmers DE464122
- Allis Chalmers DE466572
- ARA Manufacturing 1092
- ARA Manufacturing 1107
- Bando 5540
- Bando 5545
- Bando B5550
- Bendix-Westinghouse 213142
- BF Goodrich 22561
- Carquest TR22553
- CARQUEST TR22553
- Case D36426
- Case L51181
- Case Tractor D36426
- Case Tractor L51181
- Caterpillar 3S9625
- Caterpillar 5F3581
- Clark Equipment PGF3061
- Continental Belt 22550MK
- Cummins 134803
- Cummins 210116
- Cummins 3040366
- Cummins 3040450
- Cummins S2842
- Cummins S2877
- Cummins S2964
- Dayco 22555
- Dayco 22555DR
- Dayco 23555
- Dayco 365M
- Dayco 422791
- Dayco 422792
- Dayco 425749
- Dayco 429799
- Dayco 430039
- Dayco 431473
- Dayco 433894
- Dayco 44117
- Dayco 46224
- Dayco 49282
- Dayco 49356
- Dayco 49508
- Dayco 49734
- Dayco 52534
- Dayco 53514
- Dayco 53584
- Dayco 54627
- Dayco 55895
- Dayco 57343
- Dayco 58218
- Diamond Reo 3856B1550
- Durkee-Atwood 22-556
- Durkee-Atwood 453
- Dynacraft D11024799
- Epton 22561
- First Products 22-555
- Ford C6TA 8620 M
- Ford C6TZ 8620 H
- Ford C7TA 8620 N
- Ford C9PZ 8620 EG
- Ford C9PZ 8620 EN
- Ford D5HA 8A615 AUA
- Gates 15A1415
- Gates 536
- Gates 6733
- Gates 8068T
- Gates TR22553
- General Motors 2034498
- General Motors 2034499
- General Motors 2056679
- Goodyear 1143
- Goodyear 22560
- HD Value TR22553HDV
- Hino 400145122A
- Hino 900145122A
- Hino 900145128
- Hino 900149116
- Hino 900149116A
- Hino SZ91049235
- International Harvester (IHC) 1647413C1
- International Harvester (IHC) 1647414C91
- International Harvester (IHC) 1647415C91
- International Harvester (IHC) 217869R1
- International Harvester (IHC) 217869R2
- International Harvester (IHC) 26411D
- International Harvester (IHC) 312085R1
- International Harvester (IHC) 431353R11
- International Harvester (IHC) 670914C91
- International Harvester (IHC) 670915C1
- International Harvester (IHC) 670939C2
- International Harvester (IHC) 685509C1
- International Harvester (IHC) 950478R1
- International Harvester (IHC) FSK32195
- International Harvester (IHC) L22550
- John Deere E75596
- John Deere R87154
- John E Mitchell 12258
- John E. Mitchell 12258
- Komatsu 0412021756
- Leroi 4167
- Mack 88GB330P14
- Mack 88GB330P38
- Mack 88GB330P87
- MBL Three Stars 22555
- MBL Three Stars 22560
- Metric 15A1410
- Metric 15A1415
- Metric 17A1410
- Mitsuboshi MF8540
- Mitsuboshi MF8545
- Mitsuboshi RECMF8540
- Mitsuboshi RECMF8545
- Mitsuboshi REMF8540
- Mitsuboshi REMF8545
- Mopar BH-1746
- Motorcraft JE-555
- Motorcraft JE-560
- NAPA 25-14050
- NAPA Belts/Hose 25-22553
- Pacific Car & Foundry 2800046557
- Pacific Car & Foundry 2800047365
- Pacific Car & Foundry 2800047555
- Pacific Car & Foundry 2800058555
- Pacific Car & Foundry 2800058560
- Poclain P0138703
- Reo 1788G1
- Reo Trucks 1788G1
- Sierra 18-22555
- Studebaker 633599
- Volvo GM Heavy Truck V1090876
- Volvo GM Heavy Truck V1091032
- Volvo White 1091032
- Volvo White 208045029
- Volvo White 208045031
- White 049018542
- White 1020A7
- White 1600495
- White 1600988
- White 1713012
- White 682169
- White 682170
- White 688802
- White N25463
- White NA25463
- Yale 500400903
