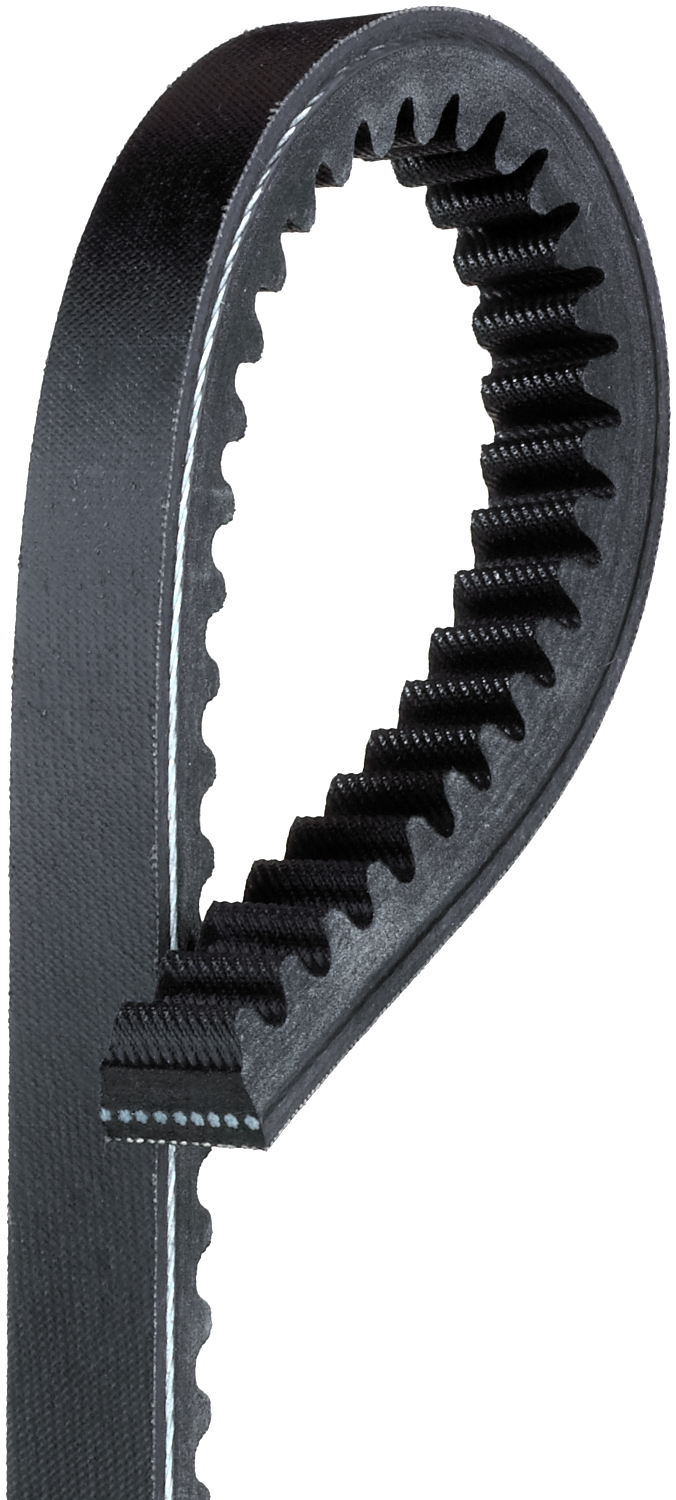

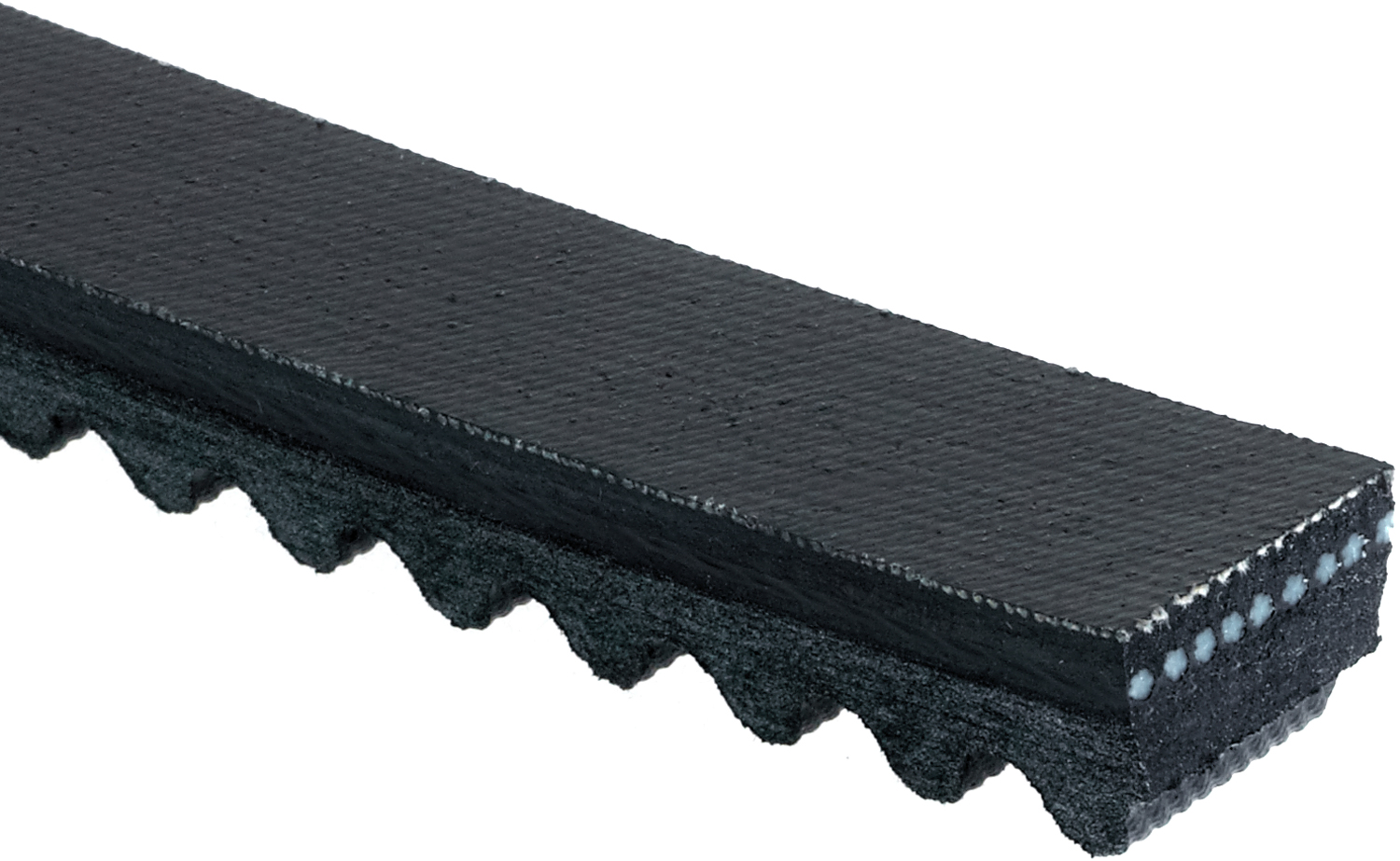

The Gates Corporation Accessory Drive Belt TR22545 keeps your engine accessories running smooth every day. It grips the pulleys tight to reduce slip, noise, and heat when you run under load. Gates builds this belt with tough rubber and strong cords, so it holds shape and lasts longer in real driving. It fits right and installs fast with no hassle. If your belt squeals, cracks, or looks glazed, replace it now. Stock moves fast.
Specifications
Gates Green Stripe Truck and Bus Series V-Belts are specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to the belt.
Strand Quantity: 1
Type: Truck & Bus V-Belt
Construction: Notched
Angle: 40
Effective Length (in) 54.5
Outside Circumference (in) 55.16
Top Width (in) 0.59
Thickness (in) 0.43
Type: Truck & Bus V-Belt
Construction: Notched
Angle: 40
Effective Length (in) 54.5
Outside Circumference (in) 55.16
Top Width (in) 0.59
Thickness (in) 0.43
Weight
0.5600
Compatibility
Hino:
FD20: 1992
FD2218 / FD2218LP: 1993–1994
FE19 / FF19: 1989–1991
FE20 / FF20 / FF23: 1992
FE2618 / FF3018 / FF3020: 1993–1994
GC20: 1992
Kenworth T80:
1987–2004 (specific compatibility confirmed for 1990–19957)
Peterbilt:
357: 1992–1999
362: 1995–1997
376: 1991–1992
377 / 378 / 379: 1992–2004
UD Trucks:
3000 / 3300 / 550T: 1989–1991
Toyota Land Cruiser:
1981–1983 (4.2L6 engine, Canada-specific models)
FD20: 1992
FD2218 / FD2218LP: 1993–1994
FE19 / FF19: 1989–1991
FE20 / FF20 / FF23: 1992
FE2618 / FF3018 / FF3020: 1993–1994
GC20: 1992
Kenworth T80:
1987–2004 (specific compatibility confirmed for 1990–19957)
Peterbilt:
357: 1992–1999
362: 1995–1997
376: 1991–1992
377 / 378 / 379: 1992–2004
UD Trucks:
3000 / 3300 / 550T: 1989–1991
Toyota Land Cruiser:
1981–1983 (4.2L6 engine, Canada-specific models)
Alternative Part Numbers
- ACDelco T22545
- Alliance Truck Parts GT22547
- Alliance Truck Parts GT22547E
- Alliance Truck Parts GT22550
- Alliance Truck Parts GT22550E
- Allis Chalmers 227133
- Allis Chalmers 4335978
- Allis Chalmers 4347531
- Allis Chalmers 4353237
- Bando 5535
- Bando B5540
- BF Goodrich 22554
- Carquest TR22545
- CARQUEST TR22545
- Case A19920
- Case D43913
- Case F8047
- Case R19920
- Case Tractor A19920
- Case Tractor D43913
- Case Tractor F8047
- Case Tractor R19920
- Caterpillar 011024800
- Caterpillar 8L5137
- Caterpillar 9L425
- Clark Equipment 6558363
- Continental Belt 22540MK
- Continental Belt 22544MK
- Continental Belt V175
- Continental Belt V49
- Cummins 104572
- Cummins 104626
- Cummins 178464
- Cummins 178465
- Cummins 210678
- Cummins S2768
- Datsun/Nissan 2114095005
- Dayco 22540
- Dayco 22545
- Dayco 22545DR
- Dayco 50708
- Dayco 54269
- Dayco 56583
- Dayco 58327
- Dayco 724M
- Epton 22554
- First Products 22-545
- Fleetrite L22550
- Fleetrite ZAH22545
- Ford C9PZ 8620 EP
- FWD Truck 60943
- General Motors 5129865
- Goodyear 22550
- Goodyear 22554
- Hino 900145126B
- Hino 900145211A
- Hino 900149119
- International Harvester (IHC) FSK32194
- Isuzu 1136710230
- Isuzu 13671198
- John Deere AR93010
- John Deere N150864
- John Deere R505792
- John Deere R87153
- John E Mitchell 14204
- John E. Mitchell 14204
- Komatsu 0412021755
- Komatsu 0412121755
- Leroi 4157
- MBL Three Stars 22545
- Metric 15A1370
- Metric 15A1385
- Metric 17A1385
- Mitsubishi 2314119002
- Mitsubishi 2314119050
- Mitsubishi 3314119002
- Mitsuboshi MF8530
- Mitsuboshi MF8535
- Mitsuboshi RECMF8530
- Mitsuboshi RECMF8535
- Mitsuboshi REMF8530
- Mitsuboshi REMF8535
- Mopar BH-1734
- Motorcraft JE-553
- NAPA 25-13850
- NAPA Belts/Hose 25-22545
- Perkins 0070079
- Reo 1789G1
- Reo Trucks 1789G1
- Sierra 18-22545
- U.S. Government 590893
- U.S. Government 7412513
- U.S. Government 8332235
- UD Trucks 2114095006
- United States Government 590893
- United States Government 7412513
- United States Government 8332235
- Volvo White 208045040
