Gates Corporation Accessory Drive Belt Part No: TR22485
$27.74
Green Stripe

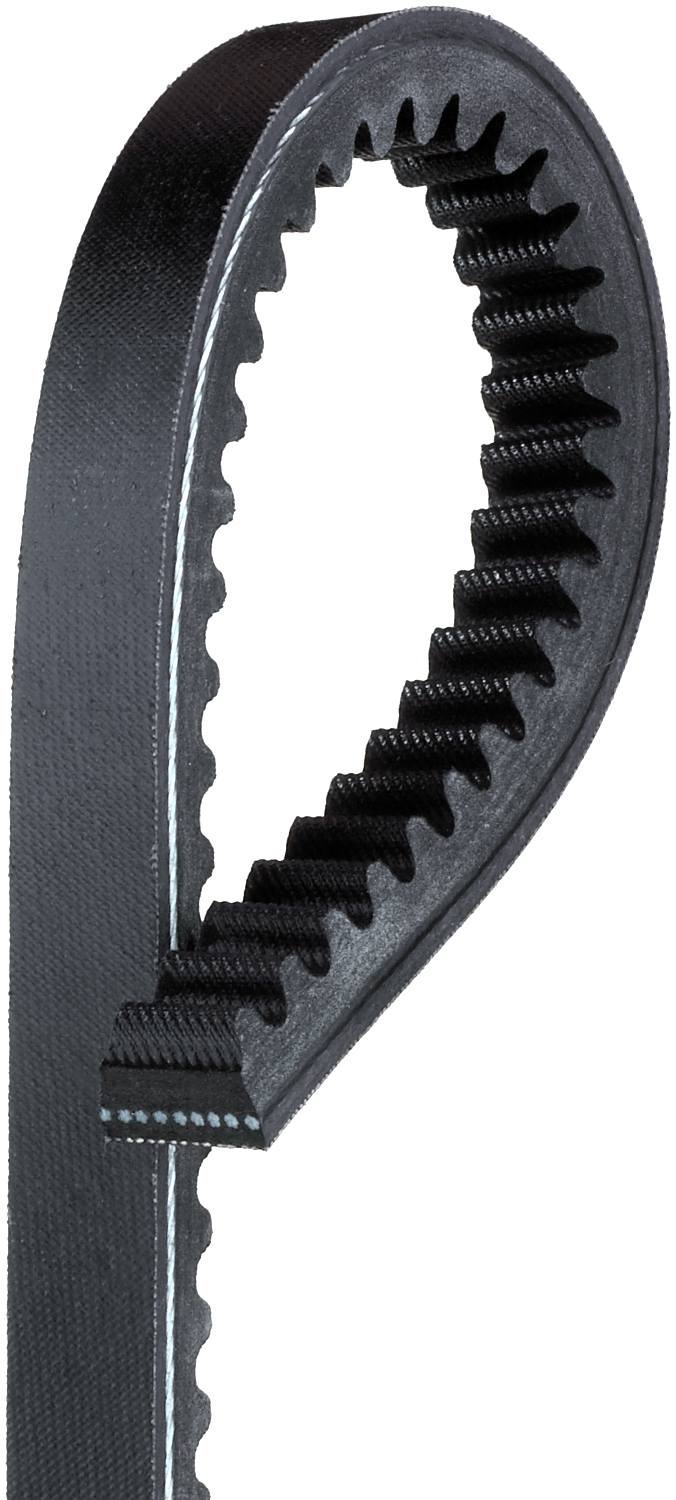

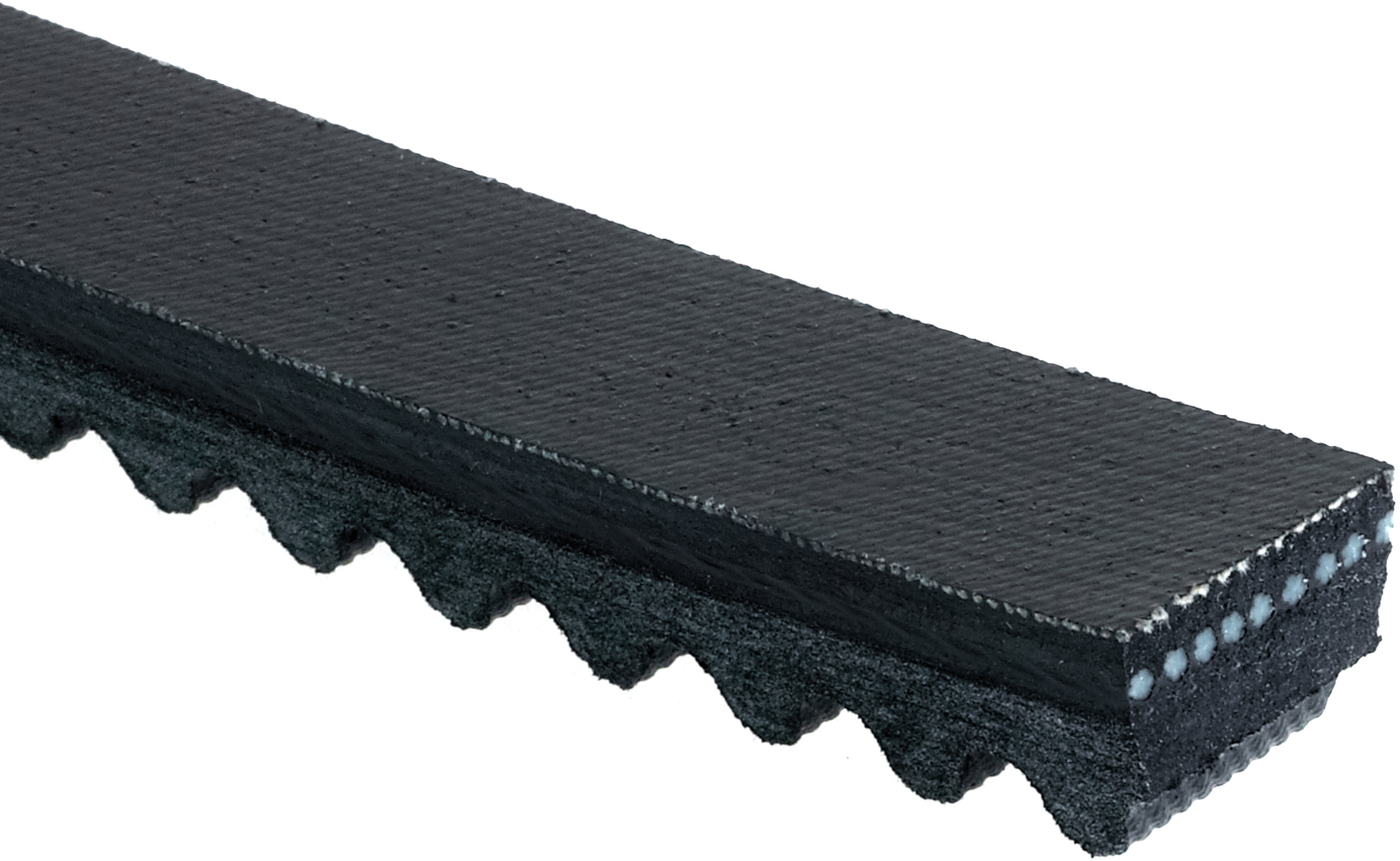

The Gates TR22485 Green Stripe Truck & Bus V-Belt is built for heavy-duty trucks, buses, and off-road equipment. Its notched construction absorbs normal shock loads, preventing belt damage while maintaining consistent power transmission. Designed with a 48.52-inch effective length, 0.59-inch top width, and 0.43-inch thickness, this belt provides reliable durability and flexibility over small pulleys. Perfectly suited for 1999–2003 International/Navistar 8100 series with Cummins ISM Diesel engines, the TR22485 ensures smooth operation for both hub and A.C. driven systems.
Specifications
Gates Green Stripe Truck and Bus Series V-Belts are specifically designed for heavy-duty truck, bus and off-road equipment applications. Absorbs normal shock loads without damage to the belt.
Strand Quantity: 1
Type: Truck & Bus V-Belt
Construction: Notched
Angle: 40
Effective Length (in) 48.52
Outside Circumference (in) 49.17
Top Width (in) 0.59
Thickness (in) 0.43
Type: Truck & Bus V-Belt
Construction: Notched
Angle: 40
Effective Length (in) 48.52
Outside Circumference (in) 49.17
Top Width (in) 0.59
Thickness (in) 0.43
Weight
0.5100
Compatibility
2003-1999 International/Navistar, 8100, Cummins ISM Diesel, Hub & A.C.
Alternative Part Numbers
- ACDelco T22485
- Alliance Truck Parts GT22490
- Alliance Truck Parts GT22490E
- Allis Chalmers 13031
- Allis Chalmers 217216
- Allis Chalmers 4349729
- Allis Chalmers 4641216
- Allis Chalmers 5828
- Allis Chalmers 604929
- Allis Chalmers KE622
- Bando 5470
- Bando 5475
- Bando B5480
- Bendix-Westinghouse 213139
- Bosch 910416-6230
- British Leyland 1B9400
- British Leyland 3H1683
- Carquest TR22485
- CARQUEST TR22485
- Caterpillar 1352409
- Caterpillar 1838207
- Caterpillar 2175420
- Caterpillar 6B2746
- Caterpillar 8F2434
- Caterpillar 9L0883
- Caterpillar 9L6653
- Chicago Pneumatic 6PS398
- Chrysler 2909499
- Continental Belt 22490MK
- Continental Belt V80
- Cummins 107653
- Cummins 155339
- Cummins 178685
- Cummins 550431
- Cummins 550481
- Cummins 650034
- Cummins S1853
- Cummins S2572
- Cummins S3130
- Datsun/Nissan 21140Z5572
- Dayco 22490
- Dayco 340
- Dayco 423110
- Dayco 426042
- Dayco 430101
- Dayco 430675
- Dayco 432964
- Dayco 434543
- Dayco 45967
- Dayco 53604
- Dayco 54925
- Dayco 56968
- Dayco 58686
- Dresser D128130
- Durkee-Atwood 22-492
- Elgin 1048553
- Fiat 570821
- First Products 22-490
- Fleetrite ZAH22490
- Fleetrite ZJG22494
- Flxible Transit Bus 41R65
- Flxible Transit Bus 910031
- Flxible Transit Bus 99691
- Ford C7TS 8620 F
- Ford D2HA 8620 BA
- Ford D5HA 8A615 AZA
- Ford E1HS 8A615 CA
- Frigiking 9116510
- Gardner Denver 13AE18
- Gates 15A1235
- Gates 598
- Gates 6726
- Gates 8065T
- Gates TR22485
- General Motors 15511630
- General Motors 2339857
- General Motors 44488
- General Motors 9044488
- General Motors E67628
- Goodyear 1320
- Goodyear 22490
- Goodyear 22492
- Goodyear 22494
- Grumman Flxible 41R65
- Grumman Flxible 910031
- Grumman Flxible 99691
- Hyster 45842
- Hyster 60498
- International Harvester (IHC) 1108763C1
- International Harvester (IHC) 139021R1
- International Harvester (IHC) 164099C1
- International Harvester (IHC) 2016338C1
- International Harvester (IHC) 328502R1
- Isuzu 1136711420
- Isuzu 1136712230
- Isuzu 1136712270
- John Deere R97758
- John E Mitchell 14310
- John E. Mitchell 14310
- Komatsu 0412021748
- Komatsu 0412021749
- Komatsu 0412121749
- Kysor 300079
- Kysor 300348
- Mack 88GB232P12
- Mack 88GB330P116
- Mack 88GB330P144
- MBL Three Stars 22485
- Metric 15A1235
- Metric 15A1245
- Mitsuboshi 34349-02400
- Mitsuboshi MF8470
- Mitsuboshi MF8475
- Mitsuboshi RECMF8470
- Mitsuboshi RECMF8475
- Mitsuboshi REMF8470
- Mitsuboshi REMF8475
- Mopar BH-148
- NAPA 25-12330
- NAPA Belts/Hose 25-22485
- Pacific Car & Foundry 2800047492
- Perkins 0070080
- Poclain U0038727
- Reo 868A7
- Reo Trucks 868A7
- Service King 6349
- Sierra 18-22490
- Temp Con 0200102
- UD 2114097008
- UD Trucks 2114097008
- Unknown 15119515
- Unknown 17X1150
- Unknown 22848X7
- Unknown 3035666
- Unknown 328505R1
- Unknown 451783
- Unknown 603739
- Unknown 6320219
- Unknown 6377116
- Unknown 7180597
- Unknown 8503061
- Unknown 8813250
- Unknown 9084612490
- Unknown 9451783U
- Unknown 9934301225
- Unknown D57303
- Unknown SC4716
- Unknown T200334
- Unknown TD1607
- Unknown WXS379
- Unknown X45051
- Volvo GM Heavy Truck V1090139
- Volvo GM Heavy Truck V1090873
- Waukesha 28006
- Waukesha 4139
- White 027016835
- White 1708989
- White 3110K143
- White 543819
- White 551448
- White KE964B
- Yale 164231
